In this article, you’ll learn how to map a one-to-many database relationship at the object level using JPA and Hibernate.

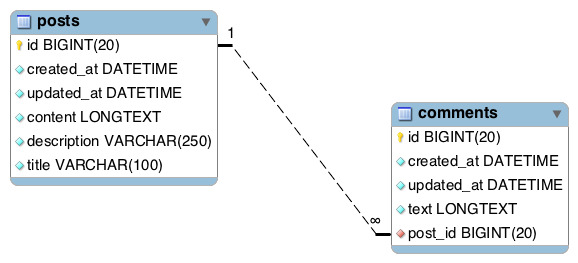

Consider the following two tables - posts and comments of a Blog database schema exhibiting a one-to-many relationship between each other -

We’ll create a project from scratch and learn how to go about implementing such one-to-many relationship at the object level using JPA and hibernate.

We’ll also write REST APIs to perform CRUD operations on the entities so that you fully understand how to actually use these relationships in the real world.

Creating the Project

If you have Spring Boot CLI installed, then you can type the following command in your terminal to generate the project -

spring init -n=jpa-one-to-many-demo -d=web,jpa,mysql --package-name=com.example.jpa jpa-one-to-many-demo

Alternatively, You can generate the project from Spring Initializr web tool by following the instructions below -

1. Go to http://start.spring.io
2. Click Switch to full version link to see all the options
3. Enter Artifact as “jpa-one-to-many-demo”
4. Change Package Name to “com.example.jpa”
5. Select Web, JPA and Mysql dependencies.
6. Click Generate Project to download the project.

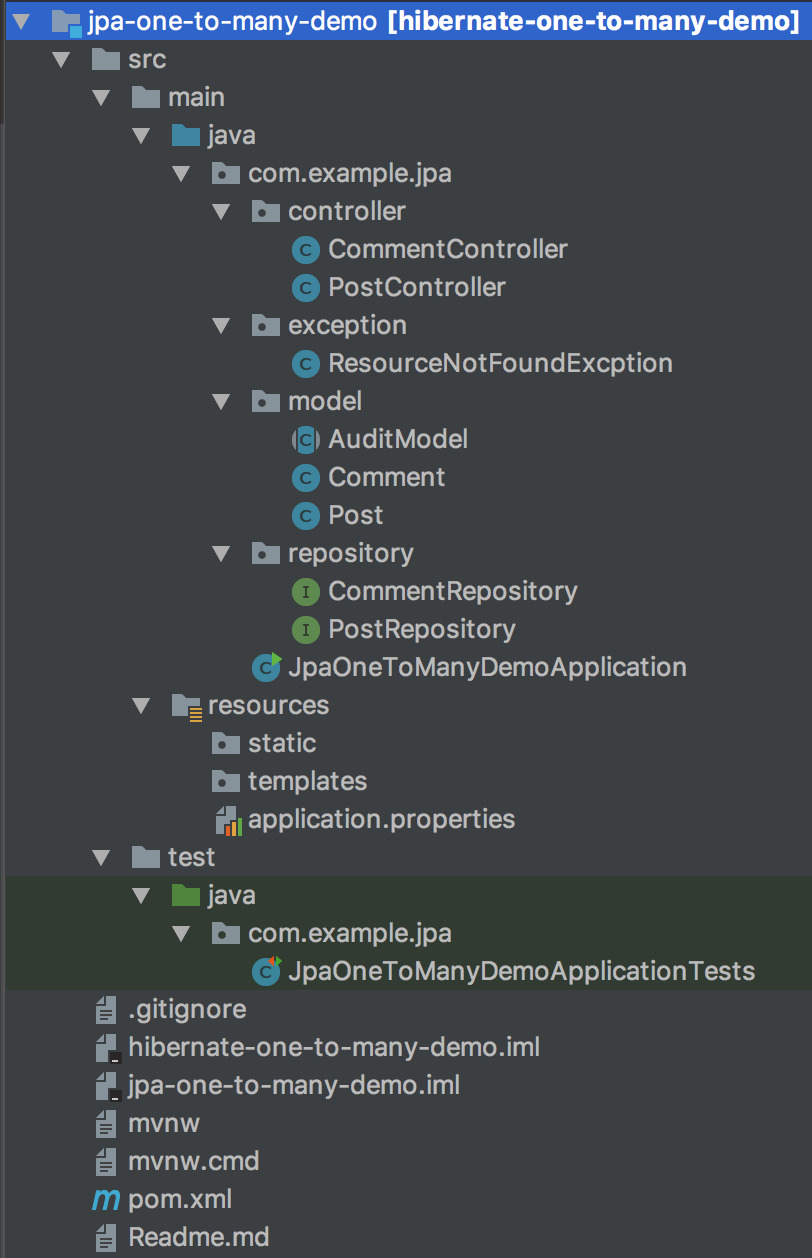

Following is the directory structure of the project for your reference -

“Your bootstrapped project won’t have model, controller, repository and exception packages, and all the classes inside these packages at this point. We’ll create them shortly.“

Configuring the Database and Logging

Since we’re using MySQL as our database, we need to configure the database URL, username, and password so that Spring can establish a connection with the database on startup. Open src/main/resources/application.properties file and add the following properties to it -

# DATASOURCE (DataSourceAutoConfiguration & DataSourceProperties)
spring.datasource.url=jdbc:mysql://localhost:3306/jpa_one_to_many_demo?useSSL=false
spring.datasource.username=root
spring.datasource.password=root

# Hibernate

# The SQL dialect makes Hibernate generate better SQL for the chosen database
spring.jpa.properties.hibernate.dialect = org.hibernate.dialect.MySQL5InnoDBDialect

# Hibernate ddl auto (create, create-drop, validate, update)
spring.jpa.hibernate.ddl-auto = update

logging.level.org.hibernate.SQL=DEBUG
logging.level.org.hibernate.type=TRACE

Don’t forget to change the spring.datasource.username and spring.datasource.password as per your MySQL installation. Also, create a database named jpa_one_to_many_demo in MySQL before proceeding to the next section.

You don’t need to create any tables. The tables will automatically be created by hibernate from the Post and Comment entities that we will define shortly. This is made possible by the property spring.jpa.hibernate.ddl-auto = update.

We have also specified the log levels for hibernate so that we can debug all the SQL statements and learn what hibernate does under the hood.

The best way to model a one-to-many relationship in hibernate

I have been working with hibernate for quite some time and I’ve realized that the best way to model a one-to-many relationship is to use just @ManyToOne annotation on the child entity.

The second best way is to define a bidirectional association with a @OneToMany annotation on the parent side of the relationship and a @ManyToOne annotation on the child side of the relationship. The bidirectional mapping has its pros and cons. I’ll demonstrate these pros and cons in the second section of this article. I’ll also tell you when a bidirectional mapping is a good fit.

But let’s first model our one-to-many relationship in the best way possible.

Defining the Domain Models

In this section, we’ll define the domain models of our application - Post and Comment.

Note that both Post and Comment entities contain some common auditing related fields like created_at and updated_at.

We’ll abstract out these common fields in a separate class called AuditModel and extend this class in the Postand Comment entities.

We’ll also use Spring Boot’s JPA Auditing feature to automatically populate the created_at and updated_atfields while persisting the entities.

1. AuditModel

package com.example.jpa.model;

import com.fasterxml.jackson.annotation.JsonIgnoreProperties;
import org.springframework.data.annotation.CreatedDate;
import org.springframework.data.annotation.LastModifiedDate;
import org.springframework.data.jpa.domain.support.AuditingEntityListener;

import javax.persistence.*;
import javax.validation.constraints.NotNull;
import java.io.Serializable;
import java.util.Date;

@MappedSuperclass
@EntityListeners(AuditingEntityListener.class)
@JsonIgnoreProperties(
        value = {"createdAt", "updatedAt"},
        allowGetters = true
)
public abstract class AuditModel implements Serializable {
    @Temporal(TemporalType.TIMESTAMP)
    @Column(name = "created_at", nullable = false, updatable = false)
    @CreatedDate
    private Date createdAt;

    @Temporal(TemporalType.TIMESTAMP)
    @Column(name = "updated_at", nullable = false)
    @LastModifiedDate
    private Date updatedAt;

    public Date getCreatedAt() {
        return createdAt;
    }

    public void setCreatedAt(Date createdAt) {
        this.createdAt = createdAt;
    }

    public Date getUpdatedAt() {
        return updatedAt;
    }

    public void setUpdatedAt(Date updatedAt) {
        this.updatedAt = updatedAt;
    }
}

In the above class, we’re using Spring Boot’s AuditingEntityListener to automatically populate the createdAtand updatedAt fields.

Enabling JPA Auditing

To enable JPA Auditing, you’ll need to add @EnableJpaAuditing annotation to one of your configuration classes. Open the main class JpaOneToManyDemoApplication.java and add the @EnableJpaAuditing to the main class like so -

package com.example.jpa;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.data.jpa.repository.config.EnableJpaAuditing;

@SpringBootApplication
@EnableJpaAuditing
public class JpaOneToManyDemoApplication {
    public static void main(String[] args) {
        SpringApplication.run(JpaOneToManyDemoApplication.class, args);
    }
}

2. Post model

package com.example.jpa.model;

import javax.persistence.*;
import javax.validation.constraints.NotNull;
import javax.validation.constraints.Size;

@Entity
@Table(name = "posts")
public class Post extends AuditModel {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    @NotNull
    @Size(max = 100)
    @Column(unique = true)
    private String title;

    @NotNull
    @Size(max = 250)
    private String description;

    @NotNull
    @Lob
    private String content;

    // Getters and Setters (Omitted for brevity)
}

3. Comment model

package com.example.jpa.model;

import com.fasterxml.jackson.annotation.JsonIgnore;
import javax.persistence.*;
import javax.validation.constraints.NotNull;
import org.hibernate.annotations.OnDelete;
import org.hibernate.annotations.OnDeleteAction;

@Entity
@Table(name = "comments")
public class Comment extends AuditModel {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    @NotNull
    @Lob
    private String text;

    @ManyToOne(fetch = FetchType.LAZY)
    @JoinColumn(name = "post_id", nullable = false)
    @OnDelete(action = OnDeleteAction.CASCADE)
    @JsonIgnore
    private Post post;

    // Getters and Setters (Omitted for brevity)
}

The Comment model contains the @ManyToOne annotation to declare that it has a many-to-one relationship with the Post entity. It also uses the @JoinColumn annotation to declare the foreign key column.



Defining the Repositories

Next, We’ll define the repositories for accessing the data from the database. Create a new package called repository inside com.example.jpa package and add the following interfaces inside the repository package -

1. PostRepository

package com.example.jpa.repository;

import com.example.jpa.model.Post;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

@Repository
public interface PostRepository extends JpaRepository<Post, Long> {

}

2. CommentRepository

package com.example.jpa.repository;

import com.example.jpa.model.Comment;
import org.springframework.data.domain.Page;
import org.springframework.data.domain.Pageable;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

@Repository
public interface CommentRepository extends JpaRepository<Comment, Long> {
    Page<Comment> findByPostId(Long postId, Pageable pageable);
}

Writing the REST APIs to perform CRUD operations on the entities

Let’s now write the REST APIs to perform CRUD operations on Post and Comment entities.

All the following controller classes are define inside com.example.jpa.controller package.

1. PostController (APIs to create, retrieve, update, and delete Posts)

package com.example.jpa.controller;

import com.example.jpa.exception.ResourceNotFoundExcption;
import com.example.jpa.model.Post;
import com.example.jpa.repository.PostRepository;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.domain.Page;
import org.springframework.data.domain.Pageable;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.*;
import javax.validation.Valid;

@RestController
public class PostController {

    @Autowired
    PostRepository postRepository;

    @GetMapping("/posts")
    public Page<Post> getAllPosts(Pageable pageable) {
        return postRepository.findAll(pageable);
    }

    @PostMapping("/posts")
    public Post createPost(@Valid @RequestBody Post post) {
        return postRepository.save(post);
    }

    @PutMapping("/posts/{postId}")
    public Post updatePost(@PathVariable Long postId, @Valid @RequestBody Post postRequest) {
        return postRepository.findById(postId).map(post -> {
            post.setTitle(postRequest.getTitle());
            post.setDescription(postRequest.getDescription());
            post.setContent(postRequest.getContent());
            return postRepository.save(post);
        }).orElseThrow(() -> new ResourceNotFoundExcption("PostId " + postId + " not found"));
    }


    @DeleteMapping("/posts/{postId}")
    public ResponseEntity<?> deletePost(@PathVariable Long postId) {
        return postRepository.findById(postId).map(post -> {
            postRepository.delete(post);
            return ResponseEntity.ok().build();
        }).orElseThrow(() -> new ResourceNotFoundExcption("PostId " + postId + " not found"));
    }

}

2. CommentController (APIs to create, retrieve, update, and delete Comments)

package com.example.jpa.controller;

import com.example.jpa.exception.ResourceNotFoundExcption;
import com.example.jpa.model.Comment;
import com.example.jpa.repository.CommentRepository;
import com.example.jpa.repository.PostRepository;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.domain.Page;
import org.springframework.data.domain.PageRequest;
import org.springframework.data.domain.Pageable;
import org.springframework.data.domain.Sort;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.*;
import javax.validation.Valid;
import java.util.List;

@RestController
public class CommentController {

    @Autowired
    private CommentRepository commentRepository;

    @Autowired
    private PostRepository postRepository;

    @GetMapping("/posts/{postId}/comments")
    public Page<Comment> getAllCommentsByPostId(@PathVariable (value = "postId") Long postId,
                                                Pageable pageable) {
        return commentRepository.findByPostId(postId, pageable);
    }

    @PostMapping("/posts/{postId}/comments")
    public Comment createComment(@PathVariable (value = "postId") Long postId,
                                 @Valid @RequestBody Comment comment) {
        return postRepository.findById(postId).map(post -> {
            comment.setPost(post);
            return commentRepository.save(comment);
        }).orElseThrow(() -> new ResourceNotFoundExcption("PostId " + postId + " not found"));
    }

    @PutMapping("/posts/{postId}/comments/{commentId}")
    public Comment updateComment(@PathVariable (value = "postId") Long postId,
                                 @PathVariable (value = "commentId") Long commentId,
                                 @Valid @RequestBody Comment commentRequest) {
        if(!postRepository.existsById(postId)) {
            throw new ResourceNotFoundExcption("PostId " + postId + " not found");
        }

        return commentRepository.findById(commentId).map(comment -> {
            comment.setText(commentRequest.getText());
            return commentRepository.save(comment);
        }).orElseThrow(() -> new ResourceNotFoundExcption("CommentId " + commentId + "not found"));
    }

    @DeleteMapping("/posts/{postId}/comments/{commentId}")
    public ResponseEntity<?> deleteComment(@PathVariable (value = "postId") Long postId,
                              @PathVariable (value = "commentId") Long commentId) {
        if(!postRepository.existsById(postId)) {
            throw new ResourceNotFoundExcption("PostId " + postId + " not found");
        }

        return commentRepository.findById(commentId).map(comment -> {
             commentRepository.delete(comment);
             return ResponseEntity.ok().build();
        }).orElseThrow(() -> new ResourceNotFoundExcption("CommentId " + commentId + " not found"));
    }
}

The ResourceNotFoundException Class

Both the Post and Comment Rest APIs throw ResourceNotFoundException when a post or comment could not be found. Following is the definition of the ResourceNotFoundException.

package com.example.jpa.exception;

import org.springframework.http.HttpStatus;
import org.springframework.web.bind.annotation.ResponseStatus;

@ResponseStatus(HttpStatus.NOT_FOUND)
public class ResourceNotFoundExcption extends RuntimeException {
    public ResourceNotFoundExcption() {
        super();
    }

    public ResourceNotFoundExcption(String message) {
        super(message);
    }

    public ResourceNotFoundExcption(String message, Throwable cause) {
        super(message, cause);
    }
}

I have added the @ResponseStatus(HttpStatus.NOT_FOUND) annotation to the above exception class to tell Spring Boot to respond with a 404 status when this exception is thrown.

Running the Application and Testing the APIs via a Postman

You can run the application by typing the following command in the terminal -

mvn spring-boot:run

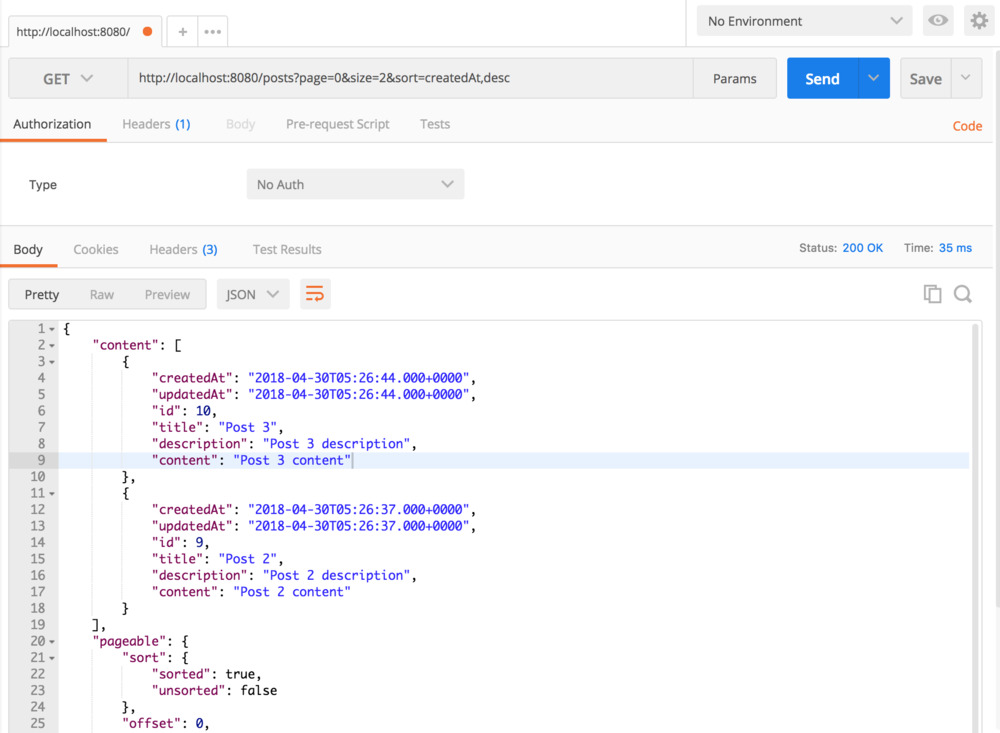

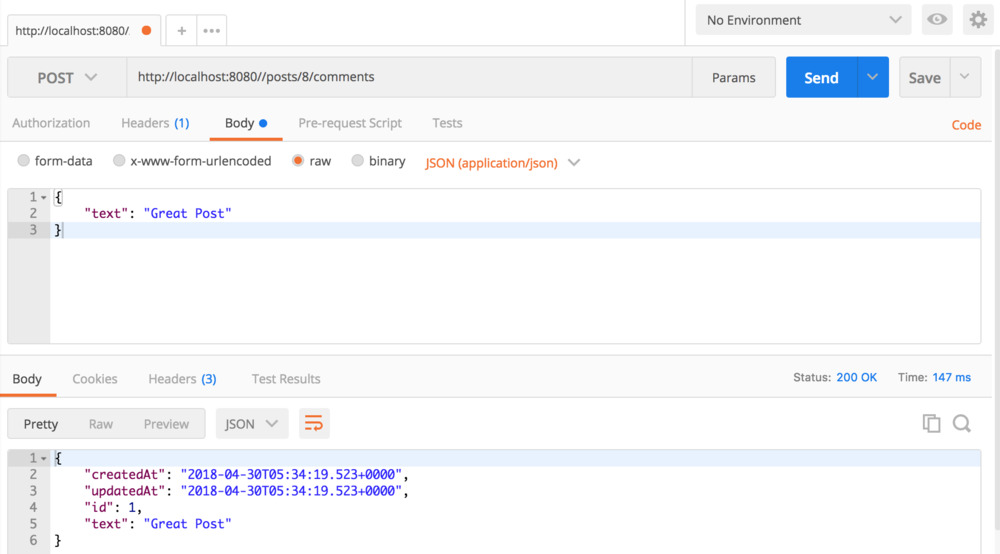

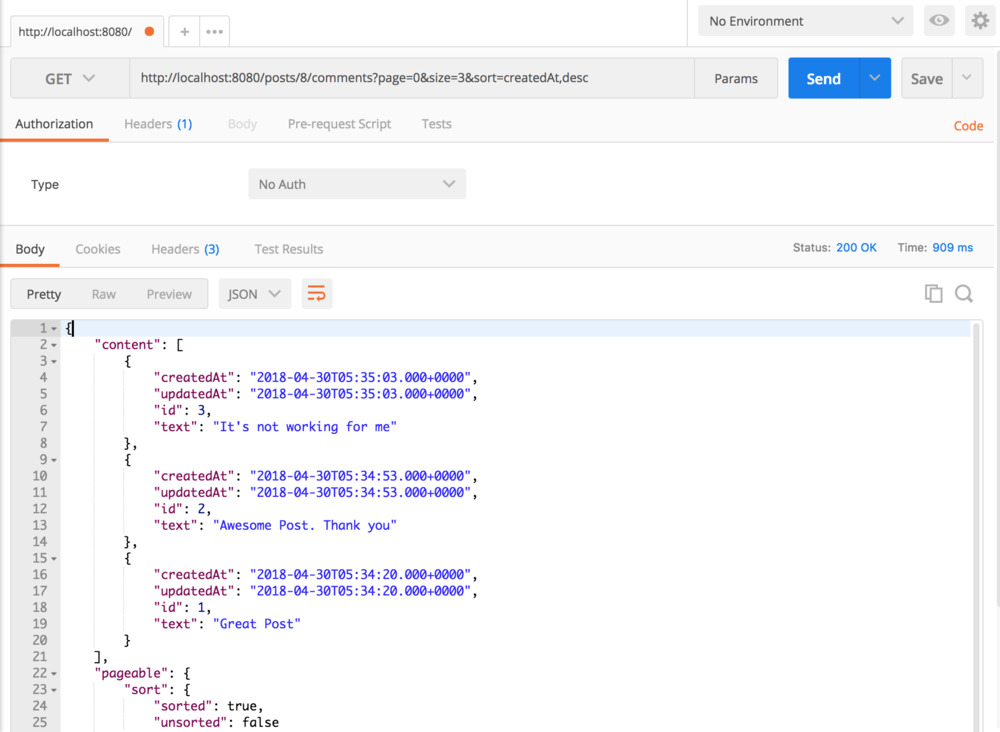

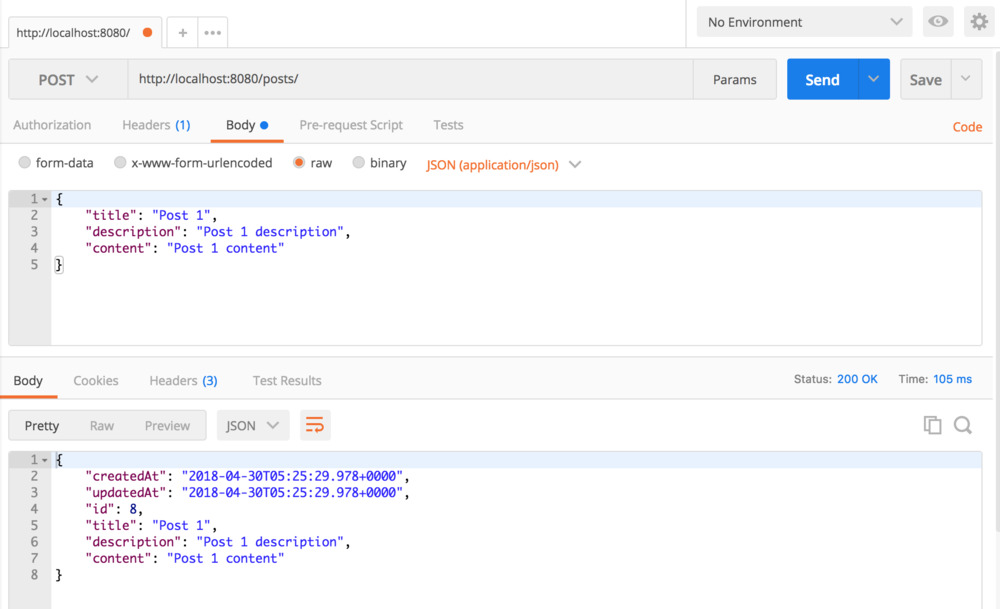

Let’s now test the APIs via Postman.

Create Post POST /posts

Get paginated Posts GET /posts?page=0&size=2&sort=createdAt,desc

Create Comment POST /posts/{postId}/comments

Get paginated comments GET /posts/{postId}/comments?page=0&size=3&sort=createdAt,desc

You can test other APIs in the same way.

How to define a bidirectional one-to-many mapping and when should you use it

The Internet is flooded with examples of bidirectional one-to-many mapping. But it’s not the best and the most efficient way to model a one-to-many relationship.

Here is the bidirectional version of the one-to-many relationship between the Post and Comment entities -

Post Entity

package com.example.jpa.model;

import javax.persistence.*;
import javax.validation.constraints.NotNull;
import javax.validation.constraints.Size;
import java.util.*;

@Entity
@Table(name = "posts")
public class Post extends AuditModel {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    @NotNull
    @Size(max = 100)
    @Column(unique = true)
    private String title;

    @NotNull
    @Size(max = 250)
    private String description;

    @NotNull
    @Lob
    private String content;

    @OneToMany(cascade = CascadeType.ALL,
            fetch = FetchType.LAZY,
            mappedBy = "post")
    private Set<Comment> comments = new HashSet<>();

    // Getters and Setters (Omitted for brevity)
}

Comment Entity

package com.example.jpa.model;

import javax.persistence.*;
import javax.validation.constraints.NotNull;

@Entity
@Table(name = "comments")
public class Comment extends AuditModel {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    @NotNull
    @Lob
    private String text;

    @ManyToOne(fetch = FetchType.LAZY)
    @JoinColumn(name = "post_id", nullable = false)
    private Post post;

    // Getters and Setters (Omitted for brevity)
}

The idea with bidirectional one-to-many association is to allow you to keep a collection of child entities in the parent, and enable you to persist and retrieve the child entities via the parent entity. This is made possible via Hibernate’s entity state transitions and dirty checking mechanism.

For example, here is how you could persist comments via post entity in the bidirectional mapping -

// Create a Post
Post post = new Post("post title", "post description", "post content");

// Create Comments
Comment comment1 = new Comment("Great Post!");
comment1.setPost(post);
Comment comment2 = new Comment("Really helpful Post. Thanks a lot!");
comment2.setPost(post);

// Add comments in the Post
post.getComments().add(comment1);
post.getComments().add(comment2);

// Save Post and Comments via the Post entity
postRepository.save(post);

Hibernate automatically issues insert statements and saves the comments added to the post.

Similarly, you could fetch comments via the post entity like so -

// Retrieve Post
Post post = postRepository.findById(postId)

// Get all the comments
Set<Comment> comments = post.getComments()

When you write post.getComments(), hibernate loads all the comments from the database if they are not already loaded.

Problems with bidirectional one-to-many mapping

• A bidirectional mapping tightly couples the many-side of the relationship to the one-side.

• In our example, If you load comments via the post entity, you won’t be able to limit the number of comments loaded. That essentially means that you won’t be able to paginate.

• If you load comments via the post entity, you won’t be able to sort them based on different properties. You can define a default sorting order using @OrderColumn annotation but that will have performance implications.

• You’ll find yourself banging your head around something called a LazyInitializationException.

When can I use a bidirectional one-to-many mapping

A bidirectional one-to-many mapping might be a good idea if the number of child entities is limited.

Moreover, A bidirectional mapping tightly couples the many-side of the relationship to the one-side. Many times, this tight coupling is desired.

For example, Consider a Survey application with a Question and an Option entity exhibiting a one-to-many relationship between each other.

In the survey app, A Question can have a set of Options. Also, every Question is tightly coupled with its Options. When you create a Question, you’ll also provide a set of Options. And, when you retrieve a Question, you will also need to fetch the Options.

Moreover, A Question can have at max 4 or 5 Options. These kind of cases are perfect for bi-directional mappings.

So, To decide between bidirectional and unidirectional mappings, you should think whether the entities have a tight coupling or not.

Conclusion

That’s all folks! In this article, You learned how to map a one-to-many database relationship using JPA and Hibernate.

You can find the code for the sample project that we built in this article in my jpa-hibernate-tutorials repositoryon github.

You might also be interested in checking out the following articles on JPA/Hibernate Mapping -

JPA / Hibernate One to One mapping Example with Spring Boot

JPA / Hibernate Many to Many mapping Example with Spring Boot

More Resources

You may wanna check out the following articles by Vlad Mihalcea to learn more about Hibernate and it’s performance -

• The best way to map a one-to-many association with JPA and Hibernate

• 14 high performance Java persistence tips

Thanks for reading. I hope you found the content useful. Consider subscribing to my newsletter if you don’t wanna miss future articles from The CalliCoder Blog.



[출처] https://www.callicoder.com/hibernate-spring-boot-jpa-one-to-many-mapping-example/#creating-the-project
