Connect App Inventor to MySQL Database

Connect App Inventor to MySQLIn this tutorial I want to show you how to connect App Inventor to a MySQL database using PHP. I tried to keep everything as simple as possible while at the same time teaching enough so that you can do anything.

You’ll be able to submit to, update and then receive a CSV file from the database using the PHP files below. You’ll also be able to limit access to data simply by creating a different PHP file for each person that would need to access the database. Everything you need can be found below.

If you like videos like this, it helps my search results if you tell Google Plus with a click here



MySQL Database Setup

App Inventor Database

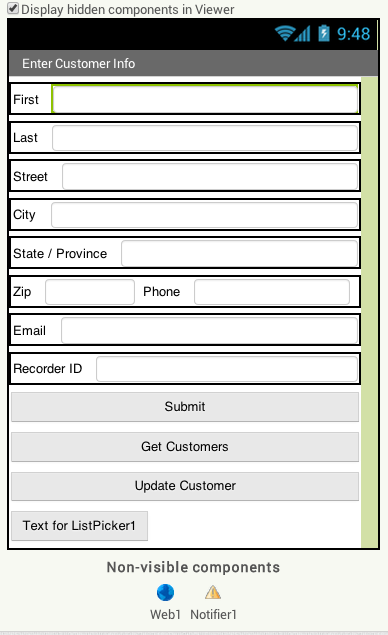

App Inventor MySQL Design View

App Inventor Designview PHP MySQL

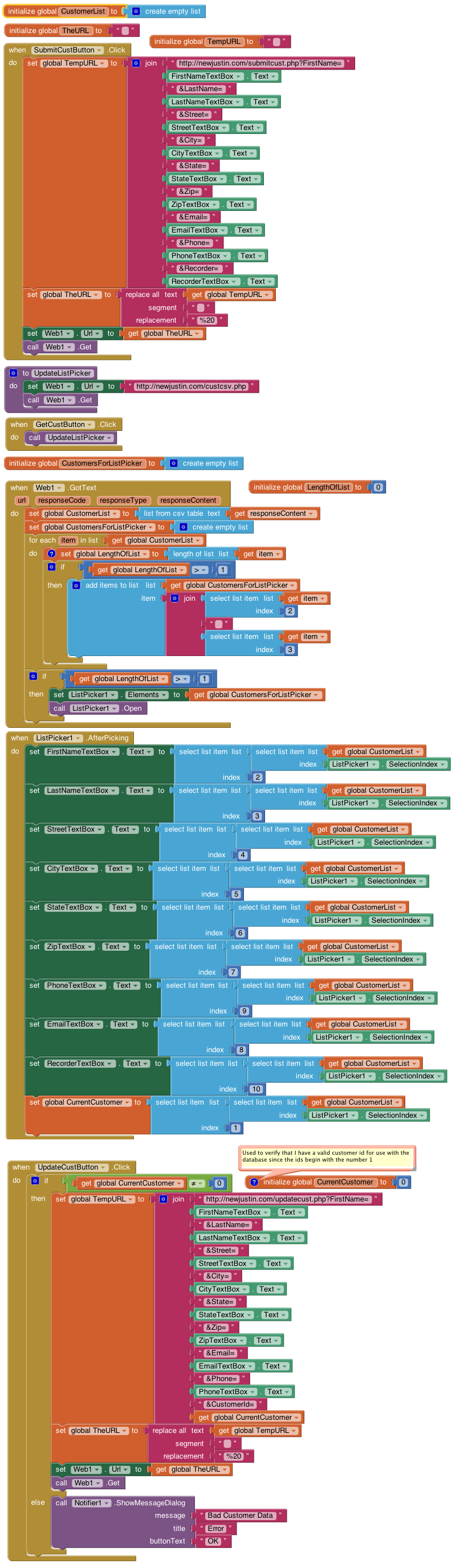

App Inventor MySQL Blocks

경축! 아무것도 안하여 에스천사게임즈가 새로운 모습으로 재오픈 하였습니다.
어린이용이며, 설치가 필요없는 브라우저 게임입니다.
https://s1004games.com

Click the image below a few times to view it full screen




PHP Code that You’ll Upload to a Server



01 <?php
02
03 DEFINE ('DBUSER', 'YourDatabaseUserName');
04 DEFINE ('DBPW', 'YourPassword');
05 DEFINE ('DBHOST', 'YourDatabaseHost');
06 DEFINE ('DBNAME', 'YourDatabaseName');
07
08 $dbc = mysqli_connect(DBHOST,DBUSER,DBPW);
09 if (!$dbc) {
10     die("Database connection failed: " . mysqli_error($dbc));
11     exit();
12 }
13
14 $dbs = mysqli_select_db($dbc, DBNAME);
15 if (!$dbs) {
16     die("Database selection failed: " . mysqli_error($dbc));
17     exit();
18 }
19
20 $result = mysqli_query($dbc, "SHOW COLUMNS FROM customer");
21 $numberOfRows = mysqli_num_rows($result);
22 if ($numberOfRows > 0) {
23
24 /* By changing Fred below to another specific persons name you can limit access to just the part of the database for that individual. You could eliminate WHERE recorder_id='Fred' all together if you want to give full access to everyone. */
25
26 $values = mysqli_query($dbc, "SELECT * FROM customer WHERE recorder_id='Fred'");
27 while ($rowr = mysqli_fetch_row($values)) {
28  for ($j=0;$j<$numberOfRows;$j++) {
29   $csv_output .= $rowr[$j].", ";
30  }
31  $csv_output .= "\n";
32 }
33
34 }
35
36 print $csv_output;
37 exit;
38 ?>



01 <?php
02
03 DEFINE ('DBUSER', 'YourDatabaseUserName');
04 DEFINE ('DBPW', 'YourPassword');
05 DEFINE ('DBHOST', 'YourDatabaseHost');
06 DEFINE ('DBNAME', 'YourDatabaseName');
07
08 $dbc = mysqli_connect(DBHOST,DBUSER,DBPW);
09 if (!$dbc) {
10     die("Database connection failed: " . mysqli_error($dbc));
11     exit();
12 }
13
14 $dbs = mysqli_select_db($dbc, DBNAME);
15 if (!$dbs) {
16     die("Database selection failed: " . mysqli_error($dbc));
17     exit();
18 }
19
20 $FirstName = mysqli_real_escape_string($dbc, $_GET['FirstName']);
21 $LastName = mysqli_real_escape_string($dbc,$_GET['LastName']);
22 $Street = mysqli_real_escape_string($dbc,$_GET['Street']);
23 $City = mysqli_real_escape_string($dbc,$_GET['City']);
24 $State = mysqli_real_escape_string($dbc,$_GET['State']);
25 $Zip = mysqli_real_escape_string($dbc,$_GET['Zip']);
26 $Email = mysqli_real_escape_string($dbc,$_GET['Email']);
27 $Phone = mysqli_real_escape_string($dbc,$_GET['Phone']);
28 $Recorder = mysqli_real_escape_string($dbc,$_GET['Recorder']);
29
30 $query = "INSERT INTO customer (first_name, last_name, street_address, city, state, zip_code, email, phone_number, recorder_id) VALUES ('$FirstName', '$LastName', '$Street', '$City', '$State', '$Zip', '$Email', '$Phone', '$Recorder')";
31
32 $result = mysqli_query($dbc, $query) or trigger_error("Query MySQL Error: " . mysqli_error($dbc));
33
34 mysqli_close($dbc);
35
36 ?>



01 <?php
02
03 DEFINE ('DBUSER', 'YourDatabaseUserName');
04 DEFINE ('DBPW', 'YourPassword');
05 DEFINE ('DBHOST', 'YourDatabaseHost');
06 DEFINE ('DBNAME', 'YourDatabaseName');
07
08 $dbc = mysqli_connect(DBHOST,DBUSER,DBPW);
09 if (!$dbc) {
10     die("Database connection failed: " . mysqli_error($dbc));
11     exit();
12 }
13
14 $dbs = mysqli_select_db($dbc, DBNAME);
15 if (!$dbs) {
16     die("Database selection failed: " . mysqli_error($dbc));
17     exit();
18 }
19
20 $FirstName = mysqli_real_escape_string($dbc, $_GET['FirstName']);
21 $LastName = mysqli_real_escape_string($dbc,$_GET['LastName']);
22 $Street = mysqli_real_escape_string($dbc,$_GET['Street']);
23 $City = mysqli_real_escape_string($dbc,$_GET['City']);
24 $State = mysqli_real_escape_string($dbc,$_GET['State']);
25 $Zip = mysqli_real_escape_string($dbc,$_GET['Zip']);
26 $Email = mysqli_real_escape_string($dbc,$_GET['Email']);
27 $Phone = mysqli_real_escape_string($dbc,$_GET['Phone']);
28
29 $CustomerId = mysqli_real_escape_string($dbc,$_GET['CustomerId']);
30
31 $query = "UPDATE customer SET first_name='$FirstName', last_name='$LastName', street_address='$Street', city='$City', state='$State', zip_code='$Zip', email='$Email', phone_number='$Phone' WHERE cust_id='$CustomerId'";
32
33 $result = mysqli_query($dbc, $query) or trigger_error("Query MySQL Error: " . mysqli_error($dbc));
34
35 mysqli_close($dbc);
36
37 ?>
38
39 <!-- http://newjustin.com/updatecust.php?FirstName=Sue&LastName=Banas&Street=123&City=Pittsburgh&State=PA&Zip=15222&Email=derek@aol.com&Phone=4125551212&CustomerId=14
40 -->











[출처] http://www.newthinktank.com/2014/05/connect-app-inventor-mysql-database/
