TinyWebDB is an App Inventor component that allows you to access the web from an Android app. You can use TinyWebDB to access a data source (API) or to store the app’s data persistently in a web database. These notes show you how to do the former– create an App-Inventor-compliant API that returns data to an App Inventor app. Often, the service you write will just serve as a proxy and call some other existing data service (e.g., Twitter, Amazon, Yahoo Finance).
Though you can create an App-Inventor-compliant API in many languages and environments, these instructions describe an API written in PHP.
To follow these instructions, you’ll need to have some programming expertise and be familiar with PHP and web services (APIs).
TinyWebDB provides two key functions: StoreValue(tag,value) and GetValue(tag) which allow an app to store and retrieve tag-value pairs.
In this tutorial we shall create a small app that allows us to store a result, and recall what we stored.
Although you can do that with standard TinyWebDB / App Engine usage in App Inventor, so we’ll do a little extra.
If the value we store is the string ‘two times table’ then let’s actually return the two times table. 1×2=2, 2×2=4 etc etc when we recall it. In other words, showing we’re processing data ahead of returning it, not just returning static items parrot fashion.
App Inventor Part
OK, so start a new project and call it ‘PHPTest’, and set the title of Screen1 to ‘PHP TinyWebDB demo’. Add the following components:
Textbox1
- Empty the Text, so it’s blank
- Set Hint to “Enter the text to be sent and stored. Send ‘two table table’ without the quotes to get the two times table”
- Set Width to Fill Parent
Button1
- Set Text to Submit
Button2
- Set Text to Retrieve
Label1
- Empty the Text, so it’s blank.
TinyWebDB1
- Set ServiceURL to http://mwk.freehostia.com/appinventor/test1.php to use my PHP server, or the address on your own PHP servers that you put the PHP file in that we’ll create in a minute
OK, now open the Blocks Editor and let’s make the magic happen.
Define two global variables:

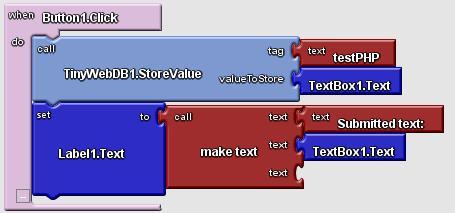

Wire up the two buttons. Start with Button1, which was ‘Submit’. Set it up as below:
Basically it’s going to make a call to StoreValue in the TinyWebDB component, passing in the tag ‘testPHP’ and the text contents of the textbox.
Now Button2, which was ‘Retrieve’. Set it up as below:
Passing in the same tag as we used to store the value, so we can use it (if we want) to identify which StoreValue is related to which GetValue.
Now let’s set up the TinyWebDB component.
First, let’s be good and catch errors that may be reported, that we can push to the users screen in Label1.

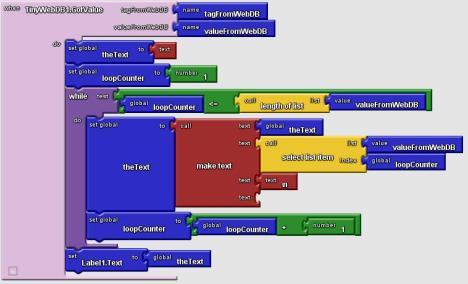

Now the guts of it. Set is up as follows:
Basically, this simply builds up a string called theText that is ultimately set to be displayed via Label1.
The guts of this is a while loop while there is still data to be read (items in the list), get each one out, and add it to theText. If you’ve set the TinyWebDB component to point to our PHP servers as mentioned above then you should be able to store and retrieve values to your hearts content without doing anything else. Don’t forget, store ‘two times table’ (case sensitive, without the quotes) and retrieve it to see the two times table and not just a straight text retrieval.
| TRY IT. Scan the barcode to your Android phone: |  |
| CUSTOMIZE IT. Download the source code blocks to create your own PHPTest app.
|
 |
PHP Part
Well, the PHP for this is remarkably simple.
| CUSTOMIZE THE API. Are you a programmer? If so, download the source code for the PHP Part |  |
What does it actualy do? First, get the Post string:
$postUrl=$_SERVER["REQUEST_URI"];
and see if it is a store request:
if(strpos($postUrl,'storeavalue')){
then get the variables that were passed in:
// Get that tag $tag = trim($tag); // Get the value $value = trim($value);
then do your processing, or whatever. If it’s a get request this will result in you creating an array of all the data you want to return:
$resultData = array("VALUE",$tag,array($theData));
where $tag is supplied by default, and $theData is the data you wish to return. Then prime a JSON formatted string using json_encode(), and return it:
$resultDataJSON = json_encode($resultData); echo $resultDataJSON;
A simple string would return something like:
["VALUE","tagname",["stored string"]]
Or a more complex array (like our two times table) could result something like:
["VALUE","tagname",{"1 x 2 = ":2,"2 x 2 = ":4,"3 x 2 = ":6,
"4 x 2 = ":8,"5 x 2 =":10}]
So as you can see, strings in quotes. Numbers not in quotes. Be careful of Gotchas!! A couple of things that stumped me during this:
- Cutting/pasting text into PHP caused odd line breaks which upset PHP. Make sure all lines are valid.
- json_encode is PHP5 only. If you can’t use that, construct the string manually, so long as it is a valid JSON string as shown in the examples above.
Also, don’t forget to point your TinyWebDB component to your correct PHP file.
I strongly recommend while you start playing to dump out to a MySQL database or a flat file, the contents of $_SERVER[“REQUEST_URI”], $tag and $value so you can see what is being passed in etc. It makes debugging a lot easier.
The world is open to pull data into App Inventor. All you need is to format it as a valid JSON string as shown in the examples above.
Have fun!!
This sample was inspired by the post ‘TinyWebDB php example’ on the official App Inventor for Android Google Groups, and thanks to the author of that post (martin12345) for his help and input.
Next steps:
I’m working on a tutorial that will do this all slightly different, and not use TinyWebDB.StoreValue any more, and rather have an App Inventor Procedure that compiles a JSON string that is sent in as the tag on a TinyWebDB.GetValue, deconstructed in PHP, does some jiggery pokery and returns another JSON string. I’ll have this out very very soon.
Martin Keywood
